Induction Melting Furnaces
Sintering Heater

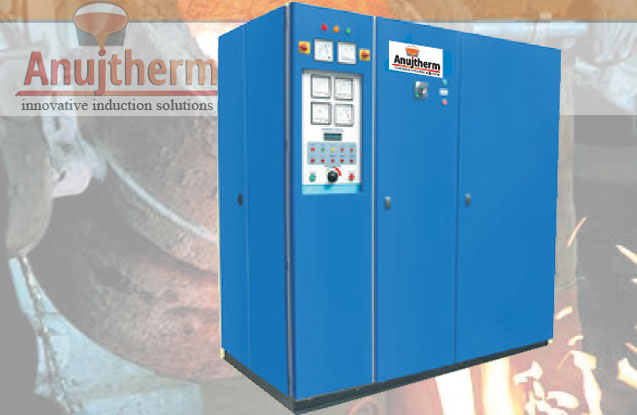

Series Inverter Control Panel.
• Power Range : 25 KW to 750 KW
• Unique Software Control
• Single Chip ASIC Control Design
• Power Factor 0.98 at all power levels
• User Friendly, custom built operator interface for ease of operation
• Ultra fast linear response for better thyristor protection
• Suitable to small Foundries for Ferrous and Non Ferrous melting
• High Speed Trips Protection.
• Digital Function Monitor
• Bi-Logical (Dual Track) :
• For Simultaneous melting in two Crucibles by
• Power sharing resulting in increased productivity

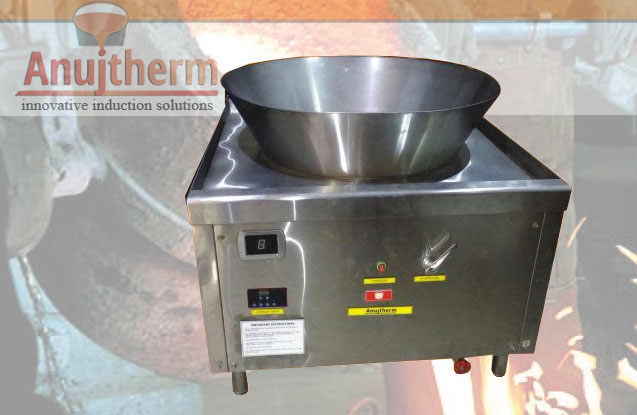

Induction Cooker
• No stray heat by convection or radiation as in the case of open flames.
• Converting almost 93% electrical energy into heat energy vessels are used
• Multiple functions like keep hot,boil,simmer,braze,sear etc.
• Power capacities from 1KW to 4oKW are available.
• Can be configured for frying in European fryer design. Kadahi flying, griddle for making chapattis/dry
roasting,boiler for milk/tea/coffee/soup etc.
• Air cooled the system required no special water lines etc for water cooling.
• Micro controller based.
• Manufactured out of SS304 making it easy to clean and very hyginic.

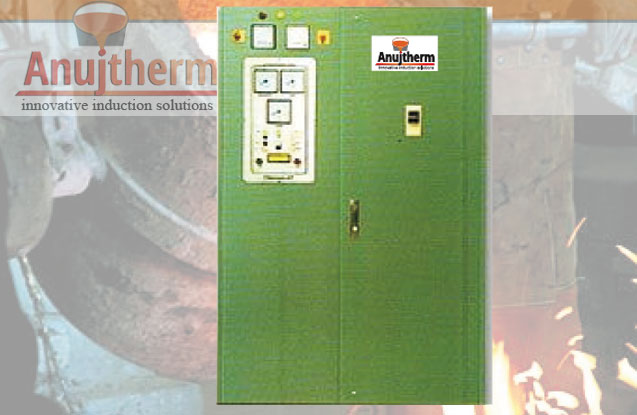

Parallel Inverter Control Panel.
• Power Range : 100 KW to 12000 KW
• 24 Pulse, 12 Pulse and 6 Pulse Rectifier design for different power levels.
• High productivity low power consumption. Low Harmonic distortion.
• Excellent layout for ease of maintenance
• State of art safety feature.
• High MF voltage design up to 4000 Volts.
• User Friendly controls.
• Excellent Full Lead Power Factor >0.96

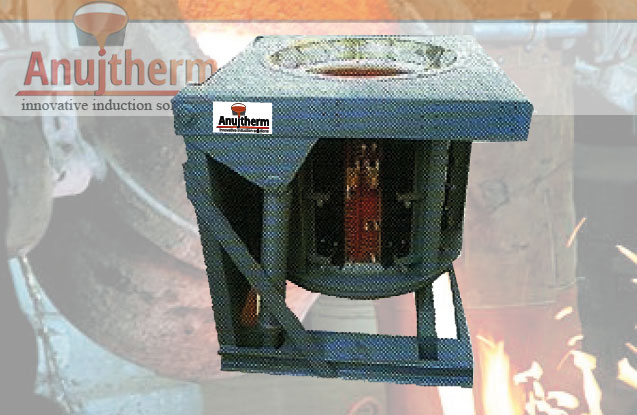

Duraline Yokeless Crucibles.
• Melting Capacity (MS) 100 Kg to 10 MT
• Unique design for ease of maintenance
• Low power consumption features
• Suitable for Ferrous & Non Ferrous melting applications
• Smooth Hydraulic tilting
• Low maintenance Epoxy insulated "Z" shaped coil.
• Heavy duty special grade Aluminium Alloy side plates
• Highly efficient water cooling circuit.
• Side cover for protection of hydraulic cylinder Front Syndanio cover to protect crucible for metal splashes.

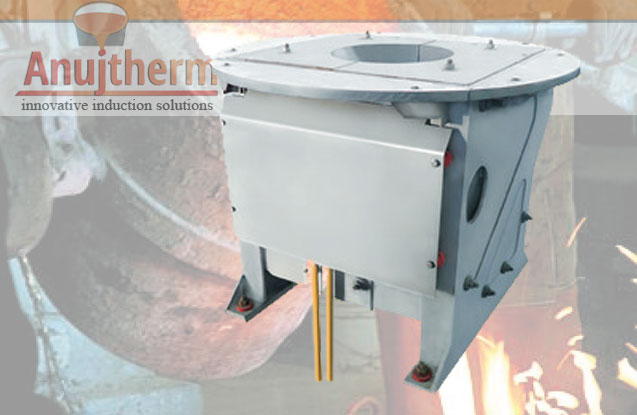

Fixed Type Crucibles.
Melting Capacity (MS) 50 Kg to 500 Kg
Application : Sanitary fittings, Brass parts manufacturing units and various
small foundaries Duraline Yokeiess Structure for high efficiency
Low loss easy to maintain design
Low maintenance Epoxy insulated 7' shaped coil

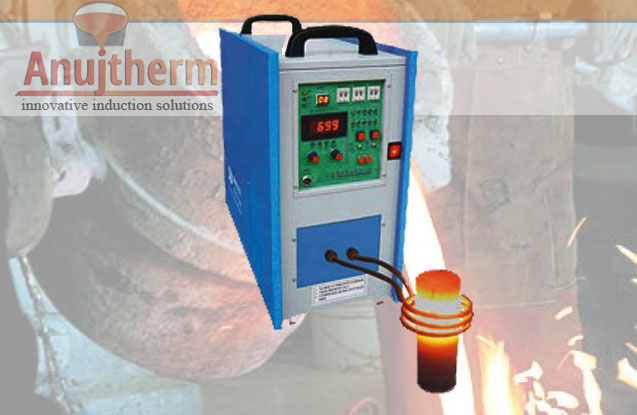

Induction Billet Heater.
• Highly reliable & advanced IGBT based technology for consistency and long life.
• Light weight and portable equipment.
• Easy to Learn and operate.
• High efficiency and energy saving
• No Pollution to environment
• Scale free operation
• Fully solid state
• Zero start up time
• Negligible maintenance

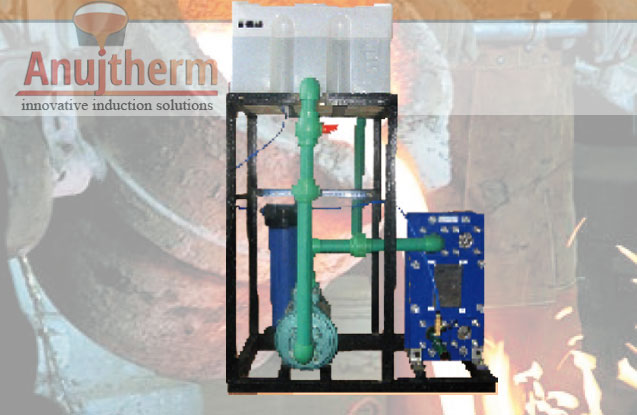

DM Water Circuit System.
• Ready to connect
• Can be installed at flexible positions.
• Easy maintenance approach.
• Occupies less space.
• S.S. Plated type Heat Exchanger & S.S. Pump used.

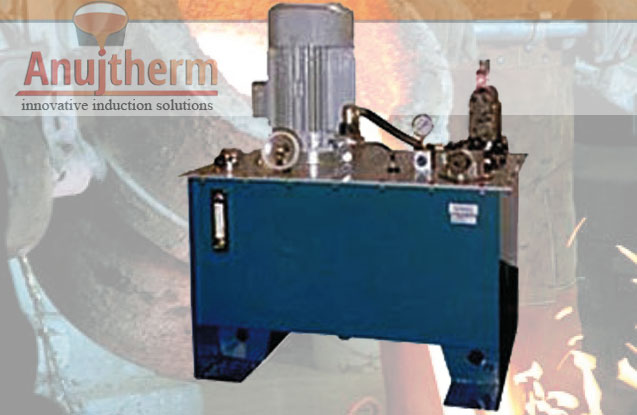

Hydraulic Power Pack.
• Rugged design
• Extra safety features
• Hand-lever for inching Operation
• Heavy duty flexible hose pipes and extra thick fittings

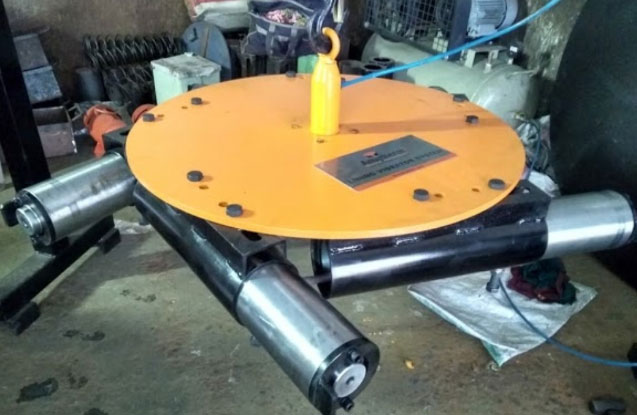

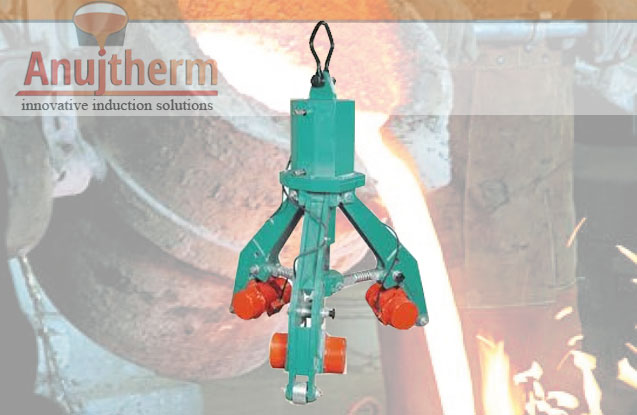

Three Leg Vibrator
Three Leg Vibrator.
•
•
•
Spares for Induction Furnaces and Induction Heaters
We manufacture and deal in following spares for all the make Induction Melting Furnace and Induction Billet Heaters.
a. For Induction Furnace:-
(i) Water cool cables
(ii) Magnetic Yokes
(iii) Copper coils
(iv) SS Dummy
(v) FRP/ Parmali supports
(vi) Spacers
(vii) Casted top and bottom
(viii) Flow switches
(ix) Pressure switches
(x) Yoke mica
(xi) Electronic Components
(xii) Thyristors
(xiii) Fuses
(xiv) Modules
(xv) Diodes
(xvi) Transformer and CT
(xvii) PCB
(xviii) And all other components, required in Induction Furnace.
b. Induction Billet Heaters:
(i) Guide rail of special stainless steel
(ii) Lining cement
(iii) Timers
(iv) Temperature sensors
(v) Copper connectors and couplings
(vi) All electronic components and PCB.
Spares
We manufacture and deal in following spares for all the make

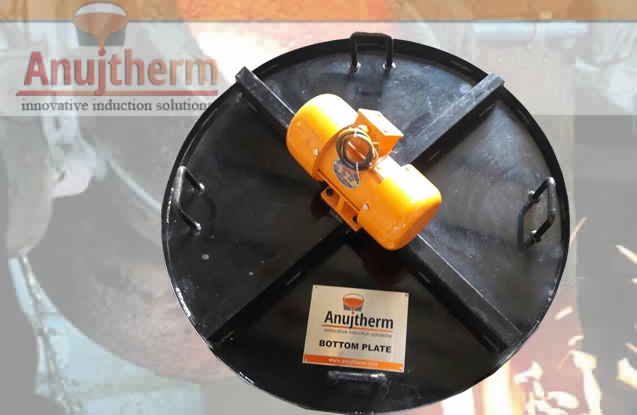

Bottom Plate
Bottom Plate

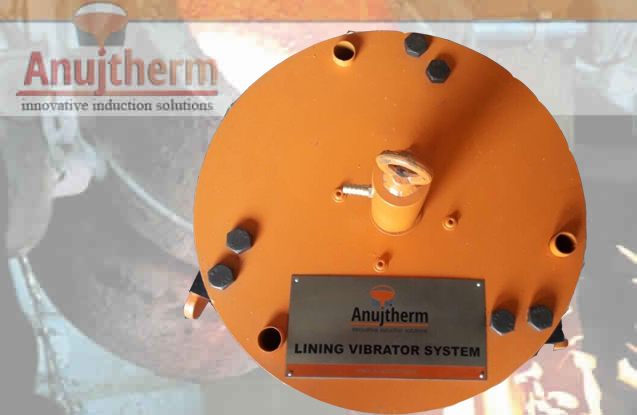

Lining Vibrator System
Lining Vibrator System
Spares for Lining Vibrator
We manufacture and deal in following spares for all the make
Magnetic Yokes
We manufacture and deal in following spares for all the make

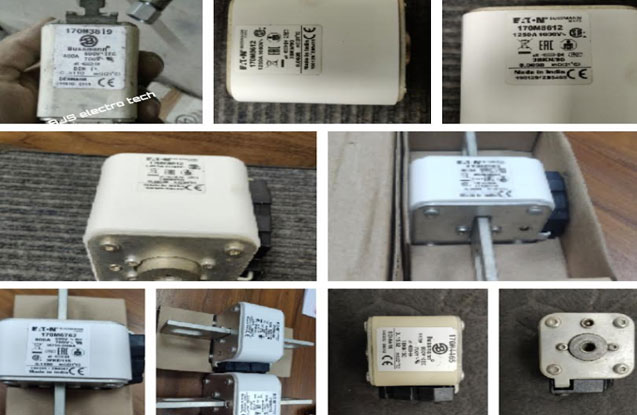

Semi Conductor Fuse
We manufacture and deal in following spares for all the make

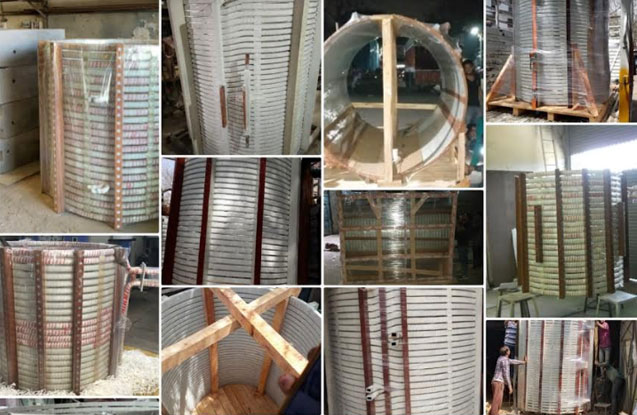

Copper Coil for Induction Furnace
We manufacture and deal in following spares for all the make

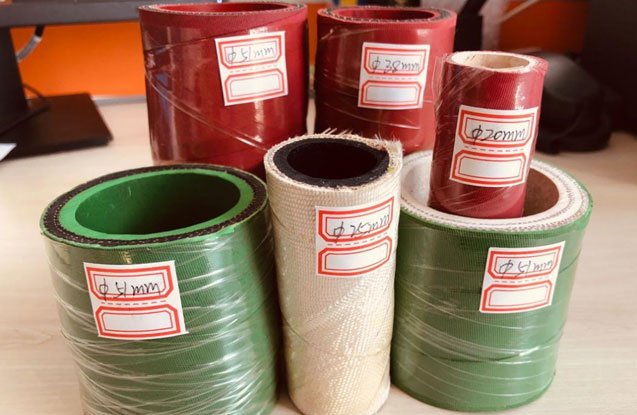

Carbon Free Hose Pipe
We manufacture and deal in following spares for all the make
Push type Lining Vibrator
We manufacture and deal in following spares for all the make
mission vision !
Our Roadmap starts with our mission, which is enduring. It declares our purpose as a company and serves as the standard against which we weigh our actions and decisions.
To refresh the world...
To inspire moments of optimism and happiness...
To create value and make a difference.
